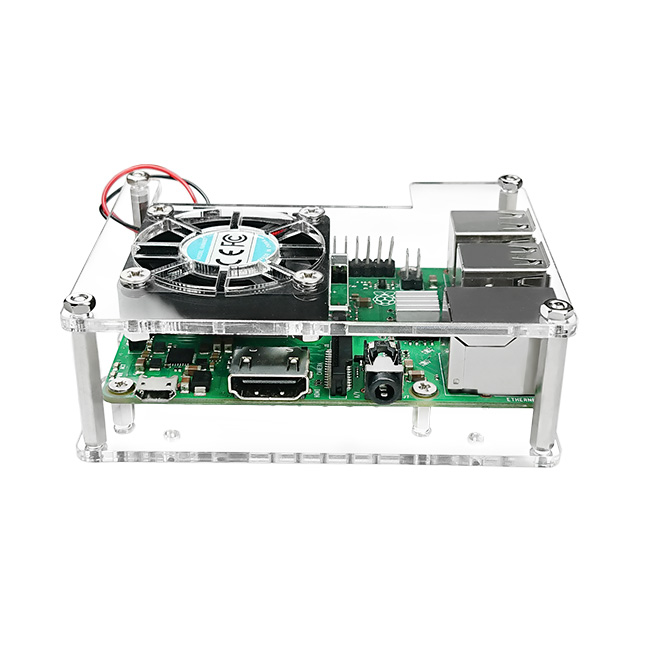

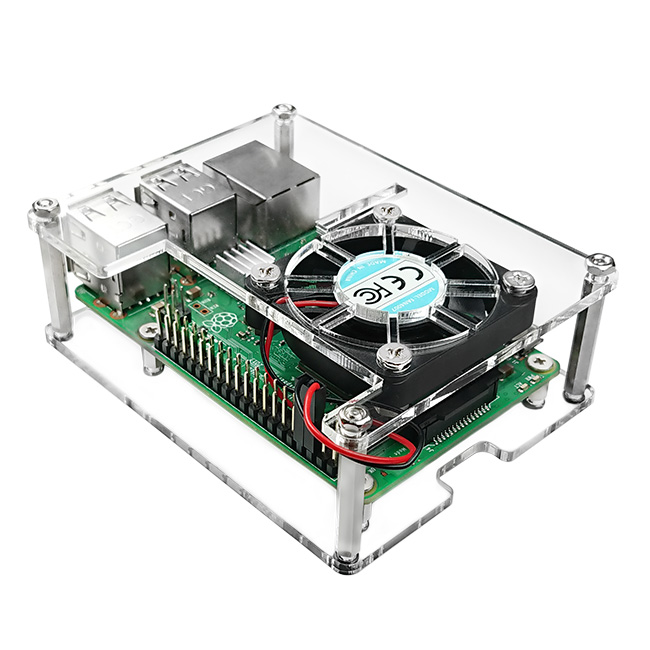

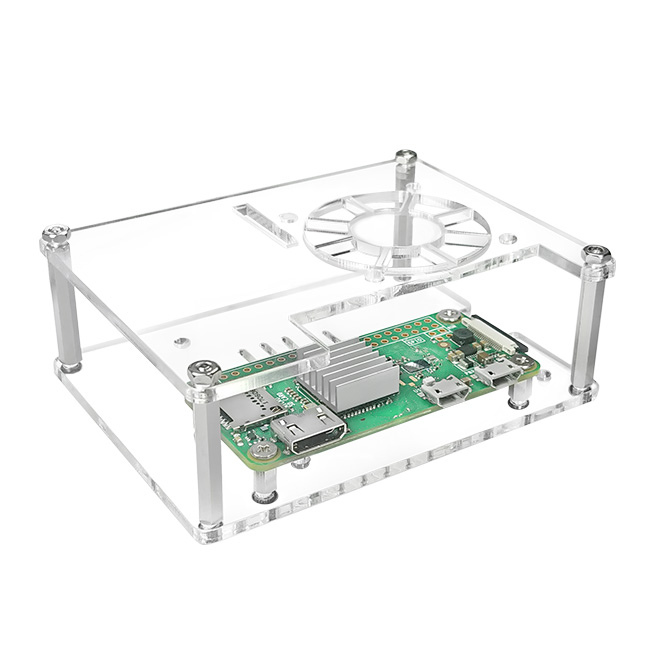

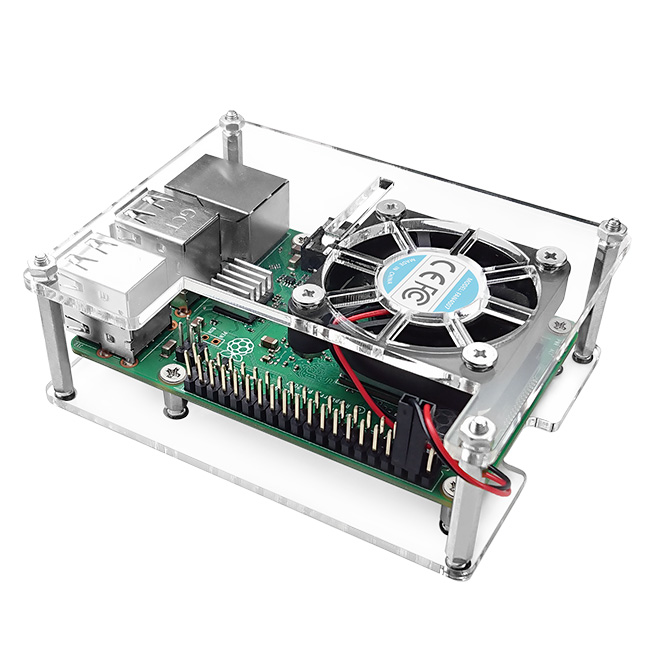

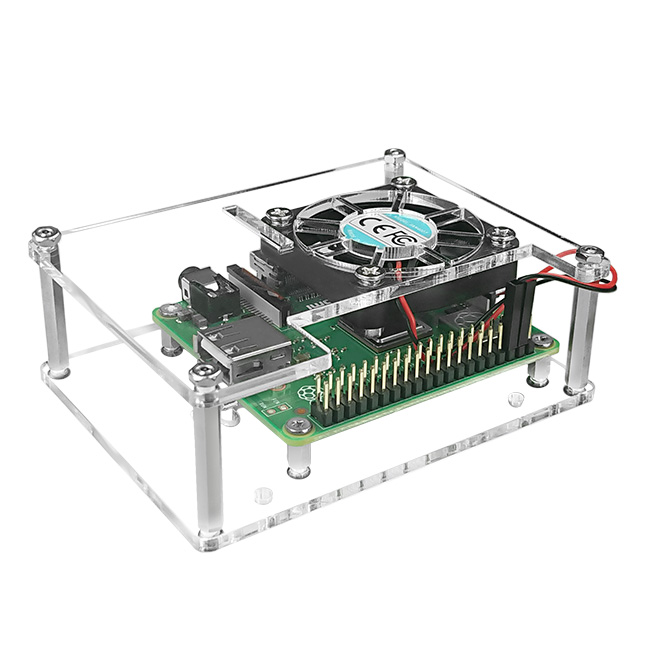

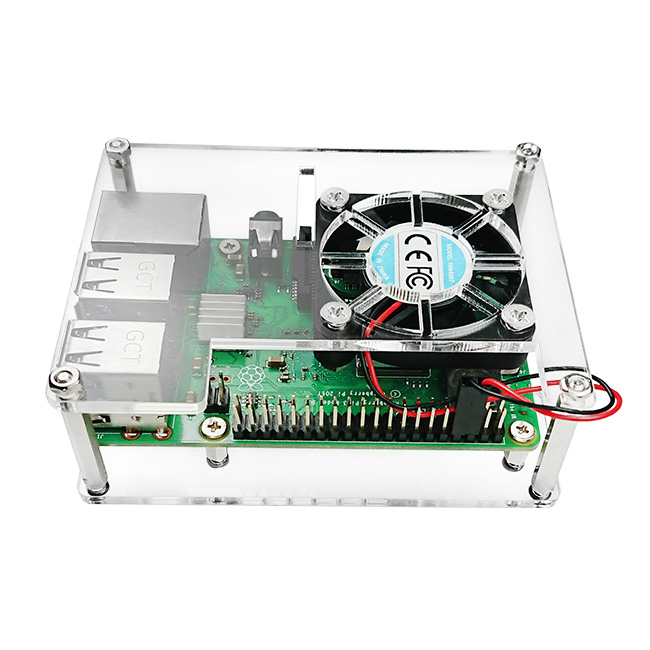

SMP06
Features:

  • Compatible with Raspberry Pi 1 Model B+, Pi 2 Model B, Pi 3 Model A+/B/B+, Pi Zero/Zero W, Asus Tinker Board/ Tinker Board S
  • Supports the installation of Raspberry Pi PoE HAT
  • Provides a 4cm fan and two heatsinks to cool CPU and IC
  • Stackable design for cluster or other demands
  • Easy access to 40-pin GPIO, camera CSI and display DSI
  • Wall mount compatible
Specification:

  • Material: Acrylic
  • Dimension: 91.0 x 69.6 x 35.4 mm
  • Fan size: 40*40*7mm
  • Fan connector type: 2.54mm pin headers
  • Package Contents: Acrylic, fan, heatsinks*2, footpads *4, screws and standoffs
