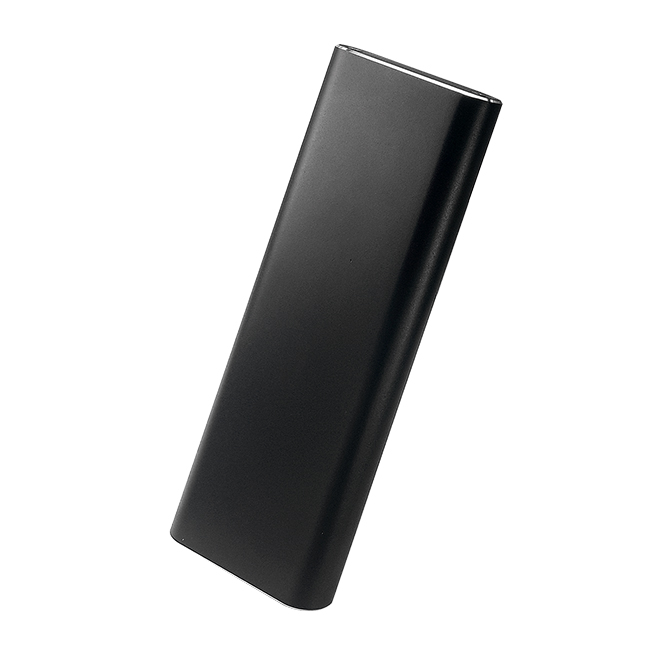

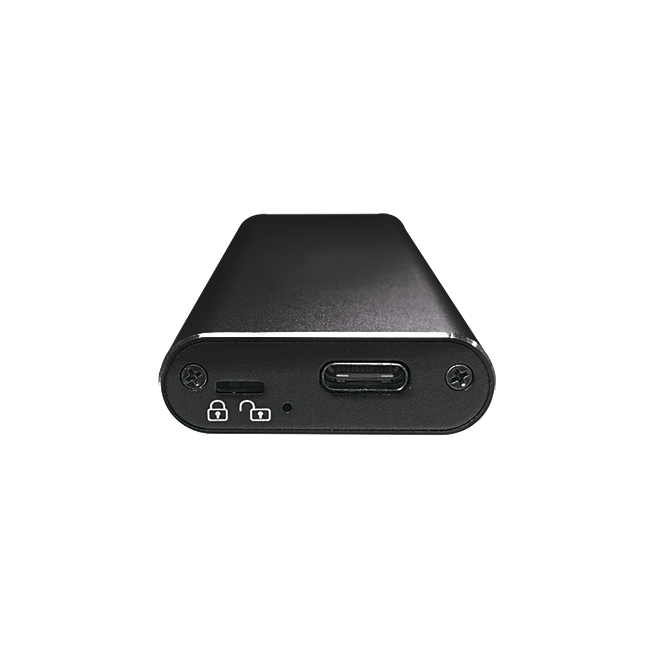

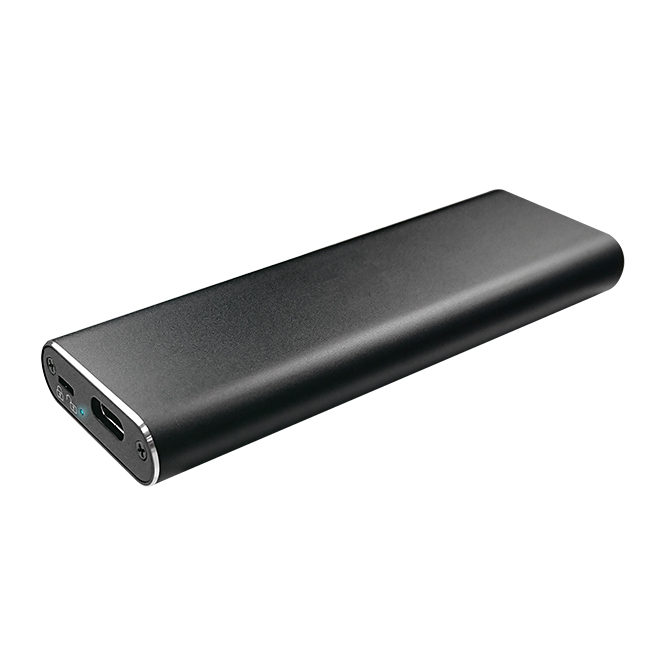

M2C6
Reversible USB Type-C Connector
Features:

  • M2C6 has small size and strong aluminum housing which makes great heat dissipation.
  • USB Type-C 3.1 Gen2 10Gbps interface
  • Supports UASP function
  • Provides write-protection function
  • White LED indicates power and R/W
  • Red LED indicates write-protection mode
Specification:

  • Material: Aluminum
  • Dimension: (L)103.2mm x (W)35.1mm x (H)11mm
  • Interface: USB 3.1 Type-C / M.2 B-KEY
  • Compatible M.2 SSD Length: 2242, 2260, 2280
  • System: Win 7 / Win 8 / Win10 / MAC OS 10.7 or above
